沃爾沃柴油發電機噴油器、壓力管和泄漏管線零件手冊
詳細描述

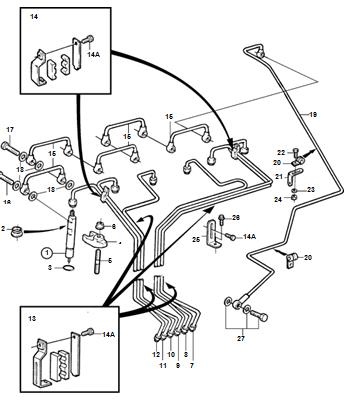

沃爾沃柴油發電機噴油器、壓力管和泄漏管線零件手冊
|
Ref 1 |
Part No. 1543753 |
Qty 6 |

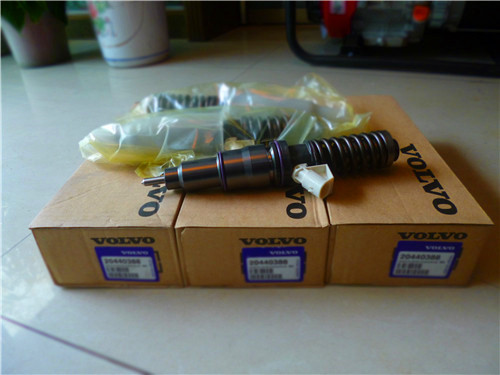

Description Notes Injector | ||
|
3803258 |
6 |
Injector, exch Exchange unit | |||
|
2 |
1543751 |
6 |
Sealing ring |
Included in gasket kit 876838. | |
|
3 |
1543574 |
6 |
O-ring |
||
|
4 |
1543497 |
6 |
Yoke |
||
|
5 |
470560 |
6 |
Stud |
||
|
6 |
1543499 |
6 |
Nut |
||
|
7 |
849297 |
1 |
Delivery pipe |
CYL 1 | |
|
8 |
849298 |
1 |
Delivery pipe |
CYL 2 | |
|
9 |
849299 |
1 |
Delivery pipe |
CYL 3 | |
|
10 |
849300 |
1 |
Delivery pipe |
CYL 4 | |
|
11 |
849301 |
1 |
Delivery pipe |
CYL 5 | |
|
12 |
849302 |
1 |
Delivery pipe |
CYL 6 | |
|
13 |
8194352 |
4 |
Clamp |
3-PIPES (470182) | |
|
14 |
8194351 |
2 |
Clamp |
2-PIPES (470181) | |
|
14A |
946544 |
6 |
Flange screw |
||
|
15 |
1543683 |
5 |
Tube |
||
|
16 |
74033 |
2 |
Hollow screw |
||
|
17 |
966834 |
5 |
Hollow screw |
(74034) | |
|
18 |
947620 |
17 |
Gasket |
Included in gasket kit 876838. | |
|
19 |
862566 |
1 |
Leak-off line |
||
|
20 |
952623 |
2 |
Clamp |
||
|
21 |
965553 |
1 |
Bracket |
||
|
22 |
956094 |
1 |
Screw |
||
|
23 |
955892 |
1 |
Washer |
||
|
24 |
945407 |
1 |
Flange nut |
||
|
25 |
965552 |
2 |
Bracket |
||
|
26 |
944926 |
2 |
Flange screw |
||
|
27 |
Connectorleak off line |
||||
