John Deere約翰迪爾強鹿柴油發動機渦輪增壓器和油路零件圖冊
詳細描述
渦輪增壓器和油路

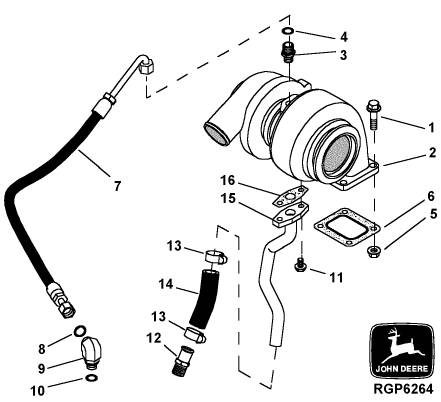

John Deere約翰迪爾強鹿6068 6.8L柴油發動機渦輪增壓器和油路零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M8162 CAP SCREW 4 X X X M10 X 40
2 RE60074 TURBOCHARGER 1 X X X (A)
RE26409 KIT 1 X X X
3 M87733 ADAPTER 1 X X X
4 R63548 O-RING 1 X X X
5 14M7296 FLANGE NUT 4 X X X M10
6 R123572 GASKET 1 X X X
7 RE503208 OIL LINE 1 X X X (SUB FOR RE59922)
8 T77613 O-RING 1 X X X
9 38H5154 ELBOW FITTING 1 X X X (INCLUDES 51M7042)
10 51M7042 O-RING 2 X X X 13.300 X 2.200 MM
11 19M7866 SCREW 2 X X X M8 X 20
12 RE54885 HOSE FITTING 1 X X X
13 RE65978 CLAMP 2 X X X
14 .................. COMPRESSED AIR HOSE 1 X X X (MAKE FROM R120013)
15 RE59438 OIL LINE 1 X X X
16 R123570 GASKET 1 X X X
(A) REMANUFACTURED
ECHANGE STANDARD
GENERALUEBERHOLT
RIFATTO
REFABRICADOR POR
RENOVERAD
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 19M8162 CAP SCREW 4 X M10 X 40
2 RE60074 TURBOCHARGER 1 X (A)
RE26409 KIT 1 X
3 M87733 ADAPTER 1 X
4 R63548 O-RING 1 X
5 14M7296 FLANGE NUT 4 X M10
6 R123572 GASKET 1 X
7 RE503208 OIL LINE 1 X (SUB FOR RE59922)
8 T77613 O-RING 1 X
9 38H5154 ELBOW FITTING 1 X (INCLUDES 51M7042)
10 51M7042 O-RING 2 X 13.300 X 2.200 MM
11 19M7866 SCREW 2 X M8 X 20
12 RE54885 HOSE FITTING 1 X
13 RE65978 CLAMP 2 X
14 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)
15 RE59438 OIL LINE 1 X
16 R123570 GASKET 1 X
(A) REMANUFACTURED
ECHANGE STANDARD
GENERALUEBERHOLT
RIFATTO
REFABRICADOR POR
RENOVERAD
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M8162 CAP SCREW 4 X X M10 X 40
2 RE60075 TURBOCHARGER 1 X X (A)
RE26409 KIT 1 X X
3 M87733 ADAPTER 1 X X
4 R63548 O-RING 1 X X
5 14M7296 FLANGE NUT 4 X X M10
6 R123572 GASKET 1 X X
7 RE501260 OIL LINE 1 X X (SUB FOR RE59468)
8 T77613 O-RING 1 X X
9 38H5154 ELBOW FITTING 1 X X (INCLUDES 51M7042)
10 51M7042 O-RING 2 X X 13.300 X 2.200 MM
11 19M7866 SCREW 2 X X M8 X 20
12 RE54885 HOSE FITTING 1 X X
13 RE65978 CLAMP 2 X X
14 .................. COMPRESSED AIR HOSE 1 X X (MAKE FROM R120013)
15 RE59438 OIL LINE 1 X X
16 R123570 GASKET 1 X X
(A) REMANUFACTURED
ECHANGE STANDARD
GENERALUEBERHOLT
RIFATTO
REFABRICADOR POR
RENOVERAD
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 19M7785 SCREW 4 X M10 X 25
2 RE60075 TURBOCHARGER 1 X (A)
RE26409 KIT 1 X
3 M87733 ADAPTER 1 X
4 R63548 O-RING 1 X
5 R123572 GASKET 1 X
6 .................. FLANGE NUT NA X
7 RE503209 HYDRAULIC HOSE 1 X (SUB FOR RE55514)
8 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)
9 19M7866 SCREW 2 X M8 X 20
10 R123570 GASKET 1 X
11 RE60003 OIL LINE 1 X
12 R63548 O-RING 1 X
13 T112804 ELBOW FITTING 1 X
14 51M7045 O-RING 1 X 19.300 X 2.200 MM
15 RE60010 ELBOW FITTING 1 X (INCLUDES 51M7045)
16 P40098 ADAPTER 1 X
17 RE65978 CLAMP 2 X (SUB FOR RE62322)
(A) REMANUFACTURED
ECHANGE STANDARD
GENERALUEBERHOLT
RIFATTO
REFABRICADOR POR
RENOVERAD
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R63548 O-RING 1 X
2 M87733 ADAPTER 1 X
3 RE60074 TURBOCHARGER 1 X (A)
RE26409 KIT 1 X
4 19M7785 SCREW 4 X M10 X 25
5 R123572 GASKET 1 X
6 19M7866 SCREW 2 X M8 X 20
7 RE506235 FUEL LINE 1 X (SUB FOR RE504545)
8 R123570 GASKET 1 X
9 RE65978 CLAMP 2 X
10 .................. COMPRESSED AIR HOSE 1 X (MAKE FROM R120013)
11 RE54885 HOSE FITTING 1 X
12 51M7042 O-RING 1 X 13.300 X 2.200 MM
13 38H5154 ELBOW FITTING 1 X
14 T77613 O-RING 1 X
15 RE503212 HYDRAULIC HOSE 1 X
(A) REMANUFACTURED
ECHANGE STANDARD
GENERALUEBERHOLT
RIFATTO
REFABRICADOR POR
